Polyisocyanurate (Iso)

Extruded Polystyrene (Styrofoam)

Polyisocyanurate (Iso)

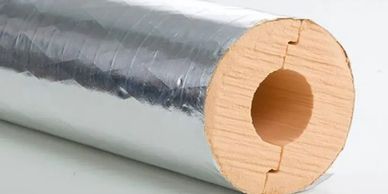

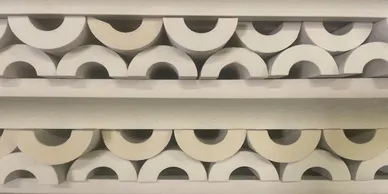

Polyisocyanurate (Iso) pipe insulation is a closed-cell, high-performance insulation for pipe, vessel, equipment and duct applications. Polyisocyanurate pipe insulation products come in a selection of densities and compressive strengths. The pipe insulation features one of the lowest ambient k-factors among all pipe insulations: 0.19 BTU · in/hr · ft2 · °F at 75°F mean temperature (0.027 W/m · °C at 24°C) and can be used over a broad temperature range from -297°F to 300°F (-183°C to 148°C).

Polyisocyanurate Data Sheet

Polyisocyanurate SDS

Phenolic Foam

Extruded Polystyrene (Styrofoam)

Polyisocyanurate (Iso)

Phenolic Foam is 100% CFC, HCFC and Halogen free.  ASTM E84 25/50 flame/smokerated up to 3 inches thick. Minimum 92% closed cell content saves energy and reduces CO2 emissions.


Phenolic Foam Data Sheet

Phenolic Foam SDS

Extruded Polystyrene (Styrofoam)

Extruded Polystyrene (Styrofoam)

Extruded Polystyrene (Styrofoam)

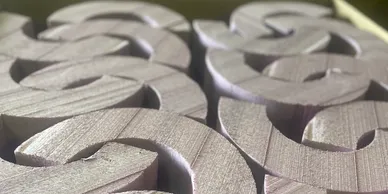

Extruded Polystyrene (XPS PIB) is ideal for demanding refrigeration applications. The rigid, closed-cell structure of XPS PIB gives it high compressive strength, low friability, and excellent water-resistance, making the material ideal for freeze-thaw cycling. Additionally, XPS PIB offers excellent thermal resistivity for a variety of applications ranging from -320°F to 165°F (-196°C to 74°C).


Cellular Glass (Foamglas)

Aluminum/stainless steel jacketing & fittings

Extruded Polystyrene (Styrofoam)

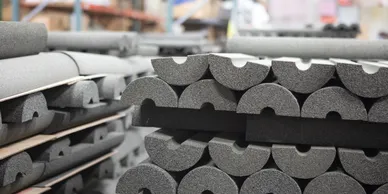

FOAMGLAS® HLB Cellular Glass Insulation is specially designed for high load bearing industrial applications. Its unique combination of high compressive strength and low thermal conductivity makes it ideal for a wide range of tank base construction and other industrial load bearing applications.


Cellular Glass Data Sheet

Cellular Glass SDS



High Density Pipe Supports (Iso 2#, 4#, 6#)

Aluminum/stainless steel jacketing & fittings

Aluminum/stainless steel jacketing & fittings

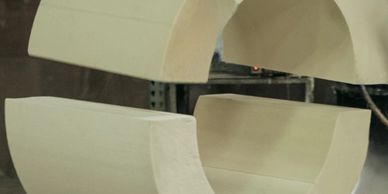

Dyplast polyisocyanurate insulation is available in 2, 2.5, 3, 4 , and 6 lb/ft3 densities, and with variable sized buns which can result in reduced waste when cutting to particular dimensions -- in turn saving money. With one of the highest R-value to thickness ratio of any commercially available insulation, no other insulation can compare. (ISO-HT pipe insulation is suitable for higher temperature applications such as; hot water pipe insulation and low temperature steam pipe insulation.)


High Density Pipe Supports Data Sheet

High Density Pipe Supports SDS

Aluminum/stainless steel jacketing & fittings

Aluminum/stainless steel jacketing & fittings

Aluminum/stainless steel jacketing & fittings

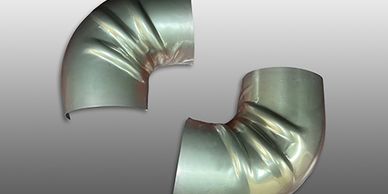

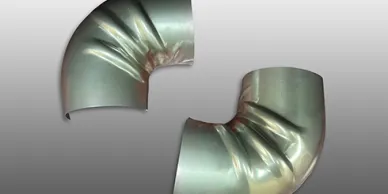

Stainless Steel Jacketing is produced from T-304 and T-316 stainless steel, meeting ASTM A-240 standards. It has extensive corrosion resistive properties and a high resistance to heat making it useful for high heat/high corrosion areas. The exterior of the Stainless Steel Roll jacketing is a 2B Mill finish for a clean look. Then the interior of Stainless Steel Roll Jacketing can be either bare, or with a 3 mil thick co-extruded Polyethylene moisture barrier.


Jacketing & fittings Data Sheet​

Product overview sheet

Download PDF

Premier Mechanical Products LLC

3016 S 24th St, Kansas City, KS 66106

(913) 271-5002 (913) 397-9700
